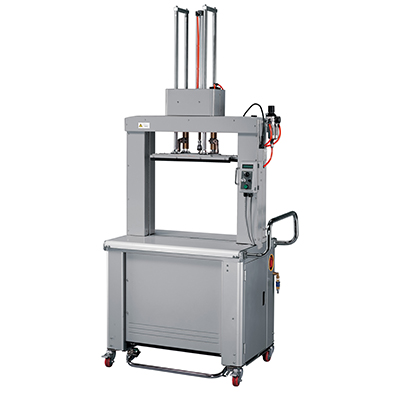

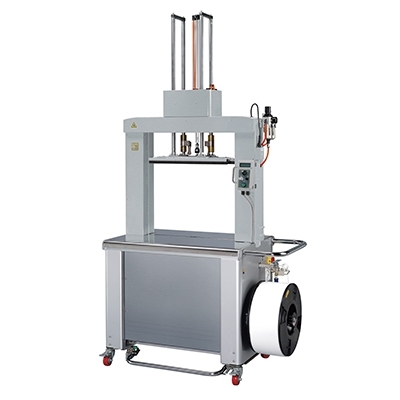

TP-702PS Mercury with Dual Pneumatic Press (stainless steel frame SUS304)
TP-702PS is a high-speed automatic strapping machine with stainless steel frame (SUS 304). It equips with dual pneumatic press for strapping compressible materials. It is ideal for moist working environment, such as meat, seafood, poultry, and agricultural processing plants.
Features
- Robust & compact mechanical strapping head
- Free access to strap guides (patents registered)
- Dual pneumatic press
- Waist-high auto strap feeding
- Waist-high quick coil change (patents registered)
- Turnable operating control panel
- Auto strap ejector
- Dispenser release switch
- Sensor controlled heater
- Low voltage
- Strap end ejector
- Front foot bar switch
- Adjustable table height between 820 mm and 920 mm
Options
- Photo-eye switch
- Rear foot bar switch
- Foot pedal switch
- Lower adjustable table height (770-820 mm)
- Safety guards
- Stainless steel frame SUS 304
Green Tech
Technical Data
| Capacity | Up to 47 cycles/minute (TP-702PS-59) Up to 44 cycles/minute (TP-702PS-12) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702PS-59) 12 mm (TP-702PS-12) |
| Tension Range | 1 to 32 kg (TP-702PS-59) 1 to 45 kg (TP-702PS-12) * Higher tension is on request |
| Weight | 224 kg (TP-702PS-59) 226 kg (TP-702PS-12) |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |
